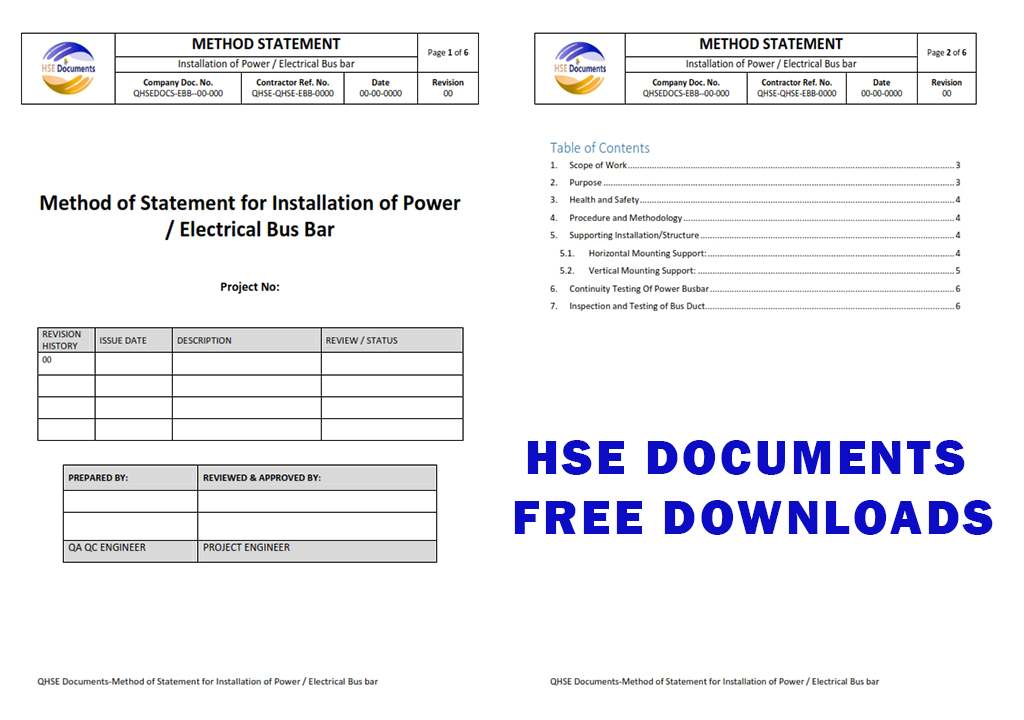

METHOD OF STATEMENT FOR INSTALLATION OF POWER-ELECTRICAL BUS BAR

Installation Methodology for Power-Electrical Bus Bar: Comprehensive Guide

Introduction:

This methodology document uploaded by HSE Documents for installing power-electrical bus bars is a crucial aspect of electrical systems, ensuring efficient power distribution across various components. This comprehensive guide will cover the step-by-step installation methodology for power-electrical bus bars, emphasizing safety measures and best practices. Whether you are a professional electrician or a DIY enthusiast, following these guidelines will help you achieve a successful and safe installation. After reading this post and attaching the original file for "Method Of Statement For Installation Of Power-electrical Bus Bar", you will able to know about the following terms:

1. Power-electrical bus bar installation

2. Electrical bus bar installation methodology

3. Bus bar installation steps

4. Electrical bus bar safety measures

5. Power bus bar best practices

6. Step-by-step bus bar installation

7. Electrical bus bar installation guide

8. Bus bar installation tips

9. Power-electrical bus bar setup

10. Bus bar mounting procedure

Section 1: Pre-Installation Preparation

1.1 Site Assessment: Conduct a thorough site assessment to identify the optimal location for the bus bar installation. Consider factors such as proximity to power sources, load centers, and accessibility for maintenance.

1.2 Bus Bar Selection: Choose the appropriate type and size of the bus bar based on the expected load, current-carrying capacity, and voltage requirements of the electrical system.

1.3 Safety Gear: Ensure that all installation personnel are equipped with proper safety gear, including insulated gloves, safety goggles, and appropriate footwear, to mitigate electrical hazards.

Section 2: Bus Bar Installation Steps

2.1 Bus Bar Mounting:

2.1.1 Clean the Surface: Ensure the mounting surface is clean and free from debris or contaminants. Use a suitable cleaning agent if required.

2.1.2 Marking: Mark the position of the bus bar on the mounting surface using a pencil or marker, following the design layout.

2.1.3 Drilling: Carefully drill holes at marked points to accommodate the mounting brackets or clamps.

2.1.4 Bracket Installation: Fix the mounting brackets securely to the surface using appropriate screws or anchors, ensuring a firm and stable foundation for the bus bar.

2.2 Bus Bar Assembly:

2.2.1 Cutting: Cut the bus bar to the required length using a hacksaw or other suitable cutting tools. Ensure that the edges are smooth and free from burrs.

2.2.2 Deburring: After cutting, deburr the edges of the bus bar to prevent injuries and ensure a clean connection.

2.2.3 Hole Punching: Punch holes at the appropriate locations along the bus bar to accommodate connectors and fasteners.

2.2.4 Bus Bar Positioning: Position the bus bar on the mounting brackets, ensuring a snug fit and alignment with the marked points.

2.3 Bus Bar Connection:

2.3.1 Terminal Connection: Attach the electrical terminals to the bus bar using the appropriate connectors and fasteners, ensuring a secure and tight connection.

2.3.2 Insulation: If required, apply insulating material around the bus bar and terminals to prevent accidental contact and potential electrical hazards.

Section 3: Safety Measures and Best Practices

3.1 Grounding:

3.1.1 Grounding Bus Bar: Establish a proper grounding connection for the bus bar to dissipate fault currents and protect against electrical shocks.

3.1.2 Grounding Resistance: Measure and ensure that the grounding resistance is within acceptable limits as per local regulations.

3.2 Electrical Testing:

3.2.1 Continuity Check: Perform a continuity check to verify that the bus bar and connections are free from any open circuits or loose terminations.

3.2.2 Insulation Testing: Conduct insulation resistance tests to ensure the bus bar and electrical components are adequately insulated.

Conclusion:

By following this installation methodology for power-electrical bus bars, you can ensure a safe and efficient power distribution system. Remember to adhere to safety measures and best practices at all times during the installation process. If you are unsure about any step, consult a qualified electrician or seek professional assistance to achieve a successful installation.
